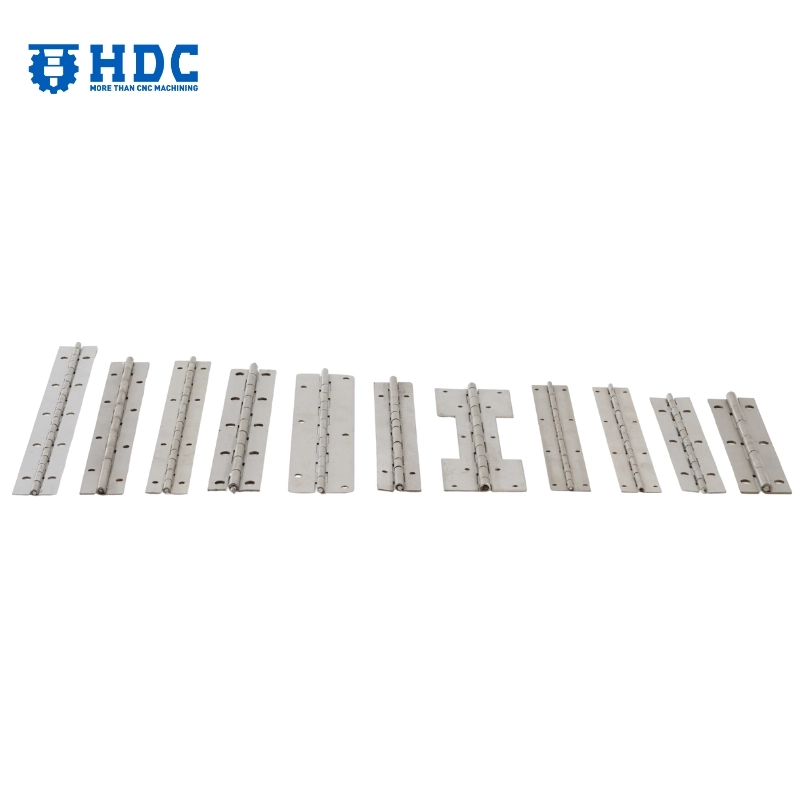

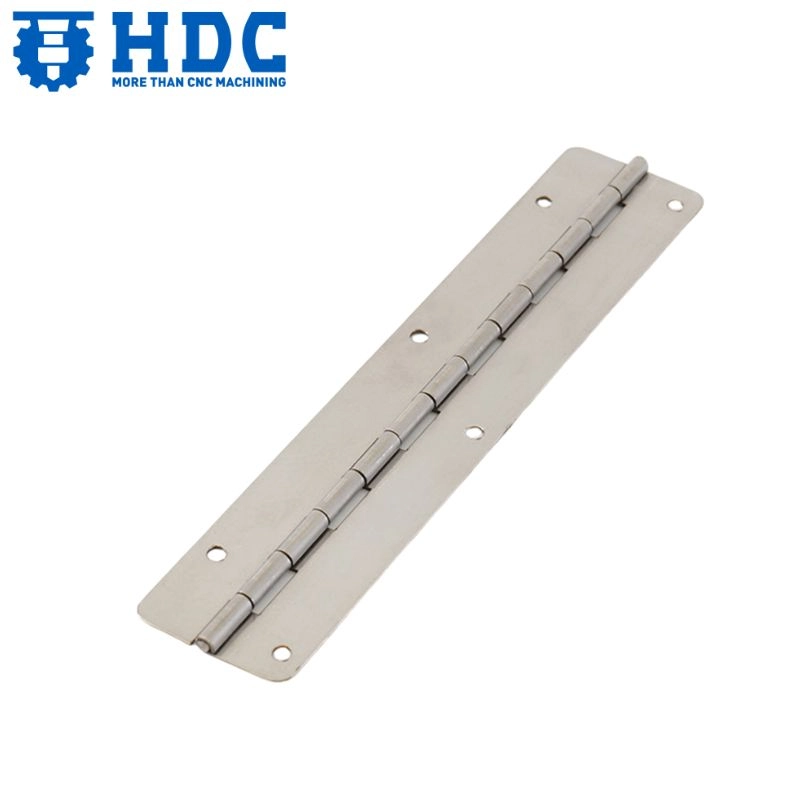

Aluminum Piano Hinge Heavy Duty Aluminum Continuous Hinges
Reference FOB Price:
US$ 1.50-9.00
/Piece | 100 Pieces (Min Order.)
Type:
Piano Hinge
Samples:
US$ 30/Piece
Customization:
Available
Shipping Cost:
Negotiate with us about Details.
Payment Method:
Custom Product Details
Basic Info
| Model NO. | HDCT142 |
| Style | Piano Hinge |
| Material | Aluminum, Aluminum Alloy |
| Finish Type | Plain |
| Available Size | / |
| MOQ | 100 Pcs |
| Custom Logo | / |
| Origin | China |
| Packaging & Delivery | |
| Shipping Option | Courier, Air, Sea, Railway Express, EXW, FOB, CIF, DDU, DDP |
| Delivery Date | 25-30 days |
| Transport Package | Customized, Carton, Pallet |
Custom Options
| Leaf Thick | Pin Dia. | Knuckle length | Knuckle dia. | Length | Material |
| Aluminum piano hinges without holes | |||||
| 0.025” | 1/16” | ¼” | 0.113” | 1’-8’ | 3004 Aluminum – Dull |
| 0.04” | 3/32” | ½” | 0.174” | 1’-8’ | 5052 Aluminum – Dull |
| 0.12” | ¼” / 3/8” | 2” | 0.490” / 0.615” | 1’-8’ | 5052 Aluminum – Dull |
| Aluminum piano hinges with holes | |||||
| 0.04” | 3/32” | ½” | 0.174” | 1’-8’ | 3003 Aluminum – Dull |
| 0.06” | 1/8” | ½” | 0.245” | 1’-8’ | 3003 Aluminum – Dull |
| 0.09” | ¼ ” | 1” | 0.430” | 1’-8’ | 3003 Anodized Aluminum – Dull |
| Material Options | – Steel (Plain / Zinc Plated) – 304 Stainless Steel (Plain / Brushed) – 316 Stainless Steel (Plain / Brushed) – Aluminum (Plain) |
| Hole Type | – With Straight Holes – With Countersunk Holes – Without Holes |
| Dimensions | – Length – Width – Thickness – Pin Diameter |
| Hole Dimensions (if applicable) | – Hole Diameter – Hole Distance |
| Additional Notes | Please provide custom dimensions or drawings for accurate quotation. |
Key Features
- Application: Ideal for long-span requirements, such as storage chests, toolboxes, and folding shelves.
- Surface Treatment: Black coated
- Material: Aluminum Alloy 6061
- Dimensions: 15.20 cm* 3.04 cm*0.20 cm.
- Weight: 0.11 kg
- Place of Origin: Wuxi, China
- Brand Name: HDC
Check out our Customization Support & Service Policy for detailed information on our customization services, including design, prototyping, and payment options.
