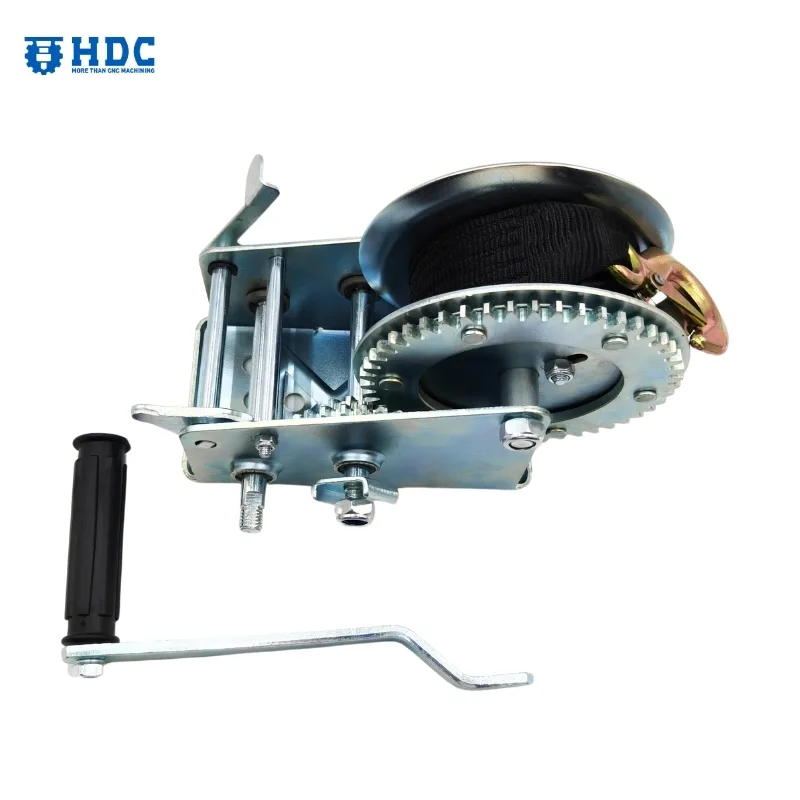

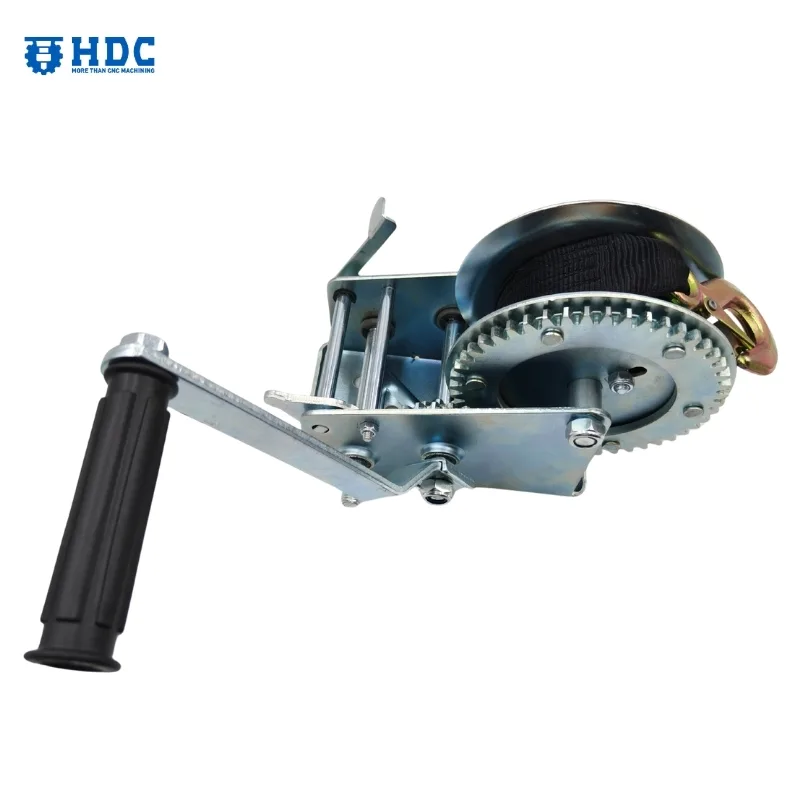

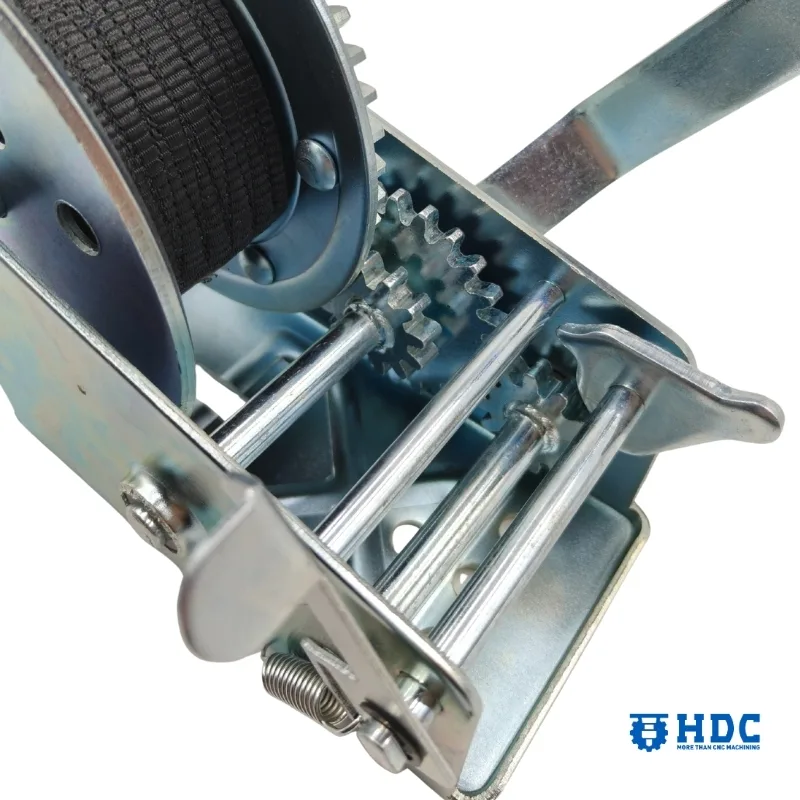

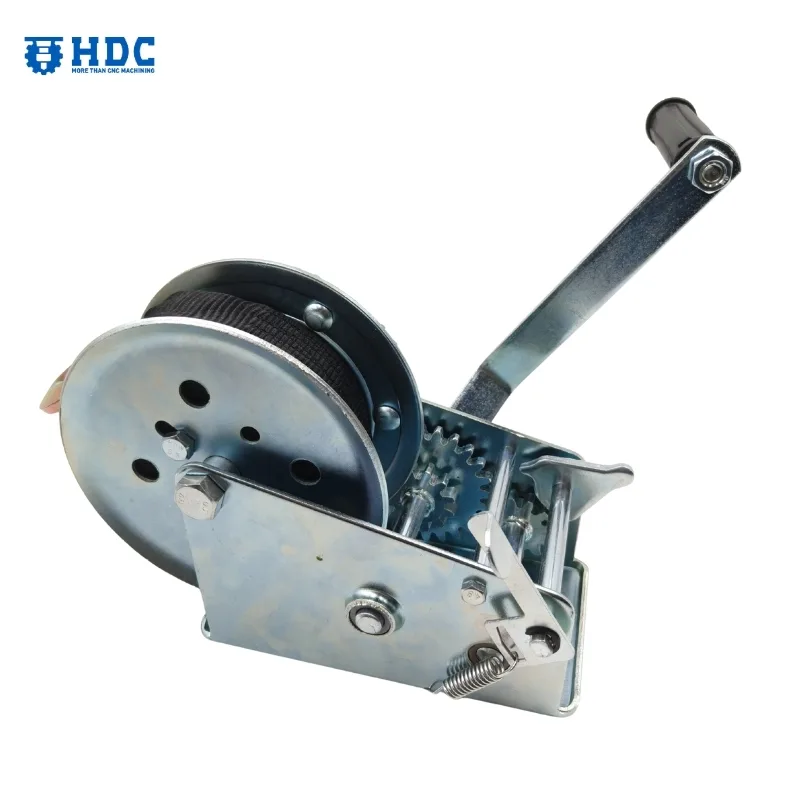

Trailer Parts Single-Speed Hand Winches with Rope or Strap

Reference FOB Price:

US $5.00-15.00

/Piece | 1000 Pieces (Min Order.)

Type:

Trailer Winch

Samples:

US$ 50/Piece

Customization:

Available

Shipping Cost:

Negotiate with us about Details.

Payment Method:

Product Details

Basic Info
Model NO.HDCTW002
StyleManual Hand Crank Winch with Hook
MaterialSteel/Carbon Steel/Plastic
Finish TypeZinc Plate
Available Size/
MOQ1000 Pcs
Custom LogoAvailable
OriginChina

Packaging & Delivery

Shipping OptionCourier, Air, Sea, Railway Express, EXW, FOB, CIF, DDU, DDP
Delivery Date25-30 days
Transport PackageCustomized, Carton, Pallet

Available Specifications:

Item No.CapacityDescriptionRemarks
HDCTW001600 LBSOne-way ratchet with neutral, 15′ strap with zinc hook, 3:1 Gear ration, Zinc plate or silver powder coatCarton
HDCTW0021000 LBSTwo-way ratchet, 20’strap with soft loop bow & zinc hook, 4:1 Gear ration, Zinc plate or silver powder coatCarton
HDCTW0031200 LBSTwo-way ratchet, 20’strap with soft loop bow & zinc hook, 4:1 Gear ration, Zinc plate or silver powder coatCarton
HDCTW0041400 LBSFree two-way ratchet with neutral, 20’strap with soft loop bow & zinc hook, 4:1Gear ration, Zinc plate or silver powder coatCarton
HDCTW0051600 LBSTwo-way ratchet with neutral, 20’srap with soft loop bow & zinc hook, 4:1 Gear ration, Dual gear drive, Zinc plate or silver powder coatCarton
HDCTW0061800 LBSTwo-way ratchet with neutral, 20’ strap with saft loop bow & zinc hook, 5:1 Gear ration, Zinc plate or silver powder coatCarton
HDCTW0072000 LBSTwo-way ratchet with neutral, 20′ strap with soft loop bow & zinc hook, 4:1 Gear ration, Dual gear drive, Zinc plate or silver powder coatCarton
HDCTW0082500 LBSSpeed winch with brake, Speed gear ratio 5:1, Power gear ratio 12:1, 2.5″X24″”strap with super grip & zinc hook, Zinc plate or silver powder coatCarton
Custom Options
Frame MaterialSteel, Stainless Steel, Aluminum
FinishZinc Plating, Powder Coating, Painted
Gear Ratio3:1, 4:1, 5:1
Strap MaterialPolyester, Nylon, Steel Cable
Handle TypeRubber Grip, Metal, Ergonomic
Load Capacity1000 lbs, 2000 lbs, 3000 lbs
Mounting OptionsWeld-On, Bolt-On, Portable Mount

Check out our Customization Support & Service Policy for detailed information on our customization services, including design, prototyping, and payment options.

Key Features

Enhance your boating experience with our Boat Trailer Winch, crafted to simplify the loading and unloading of your vessel. Designed for superior functionality and ease of use, this manual hand crank winch ensures a hassle-free transition from land to water.

  • Efficient Mechanism: Equipped with a 4:1 gear ratio, this winch allows for effortless operation, multiplying your manual effort to manage heavy loads easily, ideal for a variety of marine applications.
  • Two-Way Ratchet: Incorporates a dual-direction ratchet system, offering flexibility to operate in both pulling and releasing modes, which enhances safety and control during the loading or unloading process.
  • Durable Construction: Built with a robust steel frame and coated with a protective zinc layer, it withstands the harsh marine environment, ensuring durability and resistance to rust.
  • Long Strap: Comes with a 20-foot long strap, capable of securely handling loads up to 2000 lbs. The high-strength strap ensures longevity and reliability in securing your boat.
  • Comfort Grip Handle: Features a rubber handle that provides a comfortable and firm grip, reducing hand fatigue and slipping, especially in wet conditions.
  • Portable and Versatile: Its compact and lightweight design allows for easy transportation and storage. The winch is versatile enough to be used on various types of trailers and for different marine towing tasks.

Applications:

Ideal for boaters and marine enthusiasts who require a reliable solution for towing small to medium-sized boats. Whether you’re preparing for a leisurely day on the water or concluding your maritime adventure, this Boat Trailer Winch is essential for quick, effortless, and safe boat handling.

Opt for our Boat Trailer Winch for your next outing to ensure a smooth and efficient boating adventure, backed by robust build and user-friendly design.
