Overview
The following detailed content discusses the characteristics of 316 stainless steel which involve its chemical nature, physical and mechanical features, and electrical and thermal properties. It also focuses on the portage of 316 stainless steel cast, which presents all its advantages, including improved corrosion resistance and high tensile strength as well as enhanced formability for industries like chemical processing, marine transport, etc. The casting operation consists of building patterns, preparing molds to be filled with molten stainless steel, and finishing the resulting parts together or optional heat treatment under stringent quality control measures. All in all, this content can be used as a useful guide to the character and widespread use of 316 stainless steel.
What is 316 Stainless Steel?
316 stainless steel is austenitic type alloy which possesses good corrosion resistance, especially in environments with high chloride content. The alloy being rich in chromium, nickel, and molybdenum offers superior resistance to pitting and crevice corrosion. 316 stainless steel which is usually used for marine equipment, chemical processing, and medical devices is also a good former, weldable, and appealing to sight and thus it can also be used in the structural and decorative applications.
What Variants Does 316 Stainless Steel Have?
Stainless steel with 316 designation has several versions that are targeted for various applications. 316L stainless steel possesses lower carbon content, which makes the structure more resistant to sensitization and corrosion risks during welding due to the reduction in heat transfer across the welding zone. Hence, it is a material of choice for prone to welding structures. Though, 316H stainless steel is made of more carbon, it provides the steel with the enhanced strength, especially that of temperature. 316Ti stainless steel has titanium atoms to avoid sensitization and intergranular corrosion, hence, it is perfect for unfavorable environments and high temperatures. Furthermore, some materials can be both 316 and 316L dual certified providing additive layers possible. This gives mechanical engineers a chance to create highly-customized designs offering flexibility for variations in performance and resilience across different applications.
Which Element Composition Most Influences 316 Stainless Steel Properties?
The 316 stainless steel has excellent corrosion resistance which is noticeably supported by its chromium content that constitute 16-18% of the alloy. Chromium creates a corrosion-resistant oxide layer on the surface of steel that protects it from different environments, including corrosive ones, such as atmosphere, chemicals and salinity. Moreover, these elements add nickel and molybdenum which bolster corrosion resistance and ductility and also provide some resistance to pitting and crevice corrosion when they are seconded with chlorides. Although other elements like carbon, manganese, silicon, and nitrogen also contribute, chromium remains critical in defining the alloy’s most essential properties. This alloy consequently becomes the first choice in more demanding environments such as marine and chemical processing corrosion applications, medical devices and machines that require better corrosion resistance.
Compare 316 and 304 Stainless Steel
Among which 316 and 304 stainless steels are the most popular austenitic alloys, comprised of similar elements, mainly of chromium and nickel, though 316 steel usually has a slightly higher percentage of both. Channel between the two lies in the addition of molybdenum to 316 stainless steel, thus improving its corrosion resistance, particularly in chloride-rich spaces, and it can be therefore be used for marine and chemical applications. What is worth mentioning, it contains much less of molybdenum, but is still a good corrosion resistant material in many environments, appropriate for general-purpose use. In spite of having the greater tensile strength and lower creep resistance, the higher cost of machining and welding often make 316 stainless steel less appealing compared to lower-cost 304 stainless steel. In the end, the difference between 316 and 304 stainless steel is in the detail—the specific requirements such as environmental conditions, cost considerations, and finishing needs.
Properties of 316 Stainless Steel
Chemical Composition of 316 Stainless Steel
Component Elements Properties | Metric |
| Carbon, C | <= 0.080 % |
| Chromium, Cr | 16 – 18 % |
| Iron, Fe | 61.8 – 72 % |
| Manganese, Mn | <= 2.0 % |
| Molybdenum, Mo | 2.0 – 3.0 % |
| Nickel, Ni | 10 – 14 % |
| Phosphorus, P | <= 0.045 % |
| Silicon, Si | <= 1.0 % |
| Sulfur, S | <= 0.030 % |
Physical Properties of 316 Stainless Steel
Physical Properties | Metric | English |
| Density | 8.00 g/cc | 0.289 lb/in³ |
Mechanical Properties of 316 Stainless Steel
Mechanical Properties | Metric | English |
| Hardness, Brinell | 149 | 149 |
| Hardness, Knoop | 169 | 169 |
| Hardness, Rockwell B | 80 | 80 |
| Hardness, Vickers | 155 | 155 |
| Tensile Strength, Ultimate | 550 MPa | 79800 psi |
| Tensile Strength, Yield | 240 MPa | 34800 psi |
| Elongation at Break | 60% | 60% |
| Modulus of Elasticity | 193 GPa | 28000 ksi |
| Izod Impact | 129 J | 95.1 ft-lb |
| Charpy Impact | 105 J | 77.4 ft-lb |
Electrical Properties of 316 Stainless Steel
Electrical Properties | Metric | English |
| Electrical Resistivity | 0.0000740 ohm-cm | 0.0000740 ohm-cm |
| Magnetic Permeability | 1.008 | 1.008 |
Thermal Properties of Stainless Steel
Thermal Properties | Metric | English |
| CTE, linear | 16.0 µm/m-°C @Temperature 0.000 – 100 °C | 8.89 µin/in-°F @Temperature 32.0 – 212 °F |
16.2 µm/m-°C @Temperature 0.000 – 315 °C | 9.00 µin/in-°F @Temperature 32.0 – 599 °F | |
17.5 µm/m-°C @Temperature 0.000 – 540 °C | 9.72 µin/in-°F @Temperature 32.0 – 1000 °F | |
| Specific Heat Capacity | 0.500 J/g-°C @Temperature 0.000 – 100 °C | 0.120 BTU/lb-°F @Temperature 32.0 – 212 °F |
| Thermal Conductivity | 16.3 W/m-K @Temperature 100 °C | 113 BTU-in/hr-ft²-°F @Temperature 212 °F |
| Melting Point | 1370 – 1400 °C | 2500 – 2550 °F |
| Solidus | 1370 °C | 2500 °F |
| Liquidus | 1400 °C | 2550 °F |
| Maximum Service Temperature, Air | 870 °C | 1600 °F |
| 925 °C | 1700 °F |
* The properties of 316 stainless steel above are excerpted from MatWeb
Can 316 and 316L Stainless Steel Be Cast?
316 stainless steel can be cast using various casting methods. 316 stainless steel, a common stainless steel alloy with excellent corrosion resistance, high-temperature strength, and good mechanical properties, is widely used for castings in industries such as chemical processing, food processing and marine
The Advantage of 316 Stainless Steel Used in Casting?

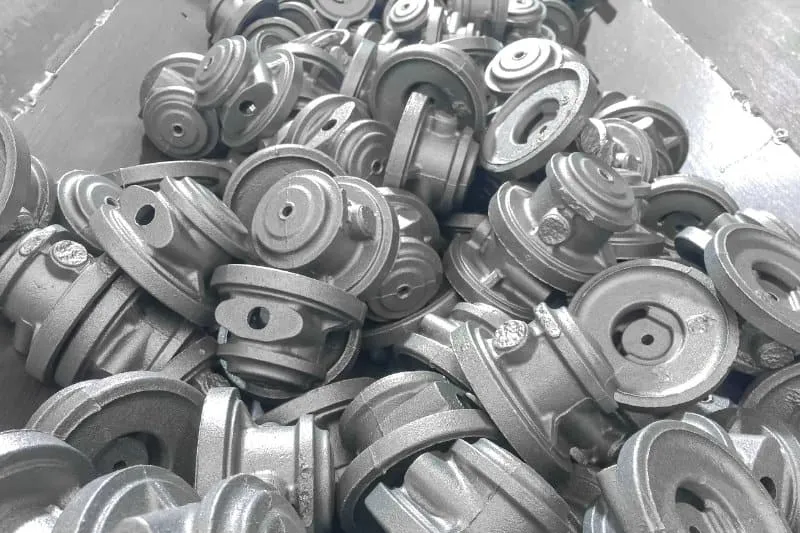

316 stainless steel casting is a process that produces components made from 316 stainless steel, an austenitic stainless steel grade known for its improved corrosion resistance compared to 304 stainless steel. The features of 316 stainless steel castings include:
- Enhanced corrosion resistance: as 316 stainless steel contains molybdenum, its resistant to pitting and crevice corrosion, This makes it suitable for marine, chemical, and other corrosive applications.
- High strength and ductility: Cast 316 stainless steel parts exhibit good strength and ductility, allowing them to withstand various loads and stresses without deforming or breaking.
- Excellent formability: Similar to 304 stainless steel, 316 stainless steel can be easily formed into complex shapes, making it ideal for producing intricate cast components.
- Heat resistance: 316 stainless steel castings can withstand moderately high temperatures (up to around 870°C) without significant loss of mechanical properties.
- Ease of cleaning: Cast 316 stainless steel components have smooth surfaces that are easy to clean and maintain, making them ideal for sanitary applications, such as food processing, pharmaceuticals, and medical equipment
Casting Methods Used For Stainless Steel Casting
Stainless steel casting employs various methods, including:
- Investment Casting (Lost-Wax): It includes making a wax model, covering it with ceramics, withdrawing the content of the melted followed by immersion in molten stainless steel.
- Sand Casting: Sand molds with pressed patterns from molten stainless steel are used.
- Die Casting: High pressure molten stainless steel injection into complex shaped steels molds.
- Continuous Casting: Prolonged and continuous pouring of molten stainless steel into the water-cool molds for long sections.
- Centrifugal Casting: The molds used to spin molten stainless steel into cylindrical parts.
- Vacuum Casting: Vacuum precision casting to minimize porosity.
All these techniques have certain features and are selected depending on the number of processed parts, required properties, production volumes. Stainless steel casting is highly diverse as it can be used in different situations.
The Process of 316 and 316L Stainless Steel Casting
The process of stainless steel casting typically involves the following steps:
- Pattern creation: A pattern of the desired component is created, usually using wax or a similar material. This pattern is an exact replica of the part to be cast, including any intricate details and features.

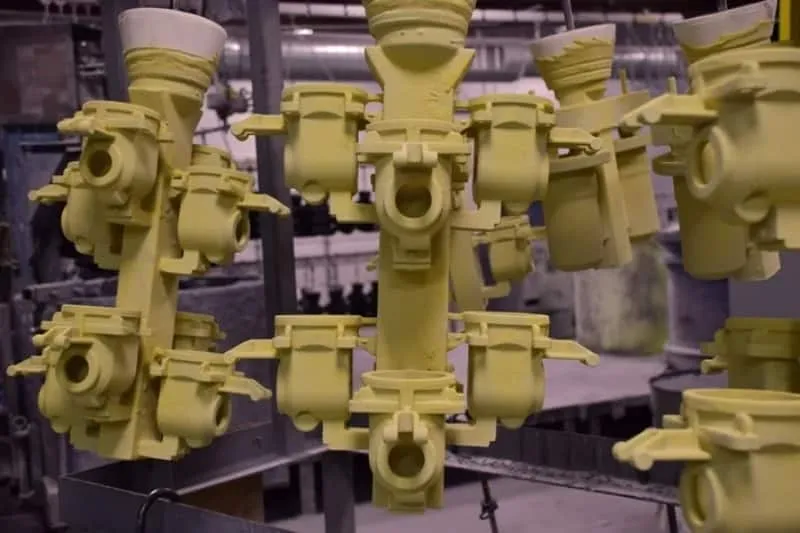

- Mold assembly: The pattern is then coated with a refractory ceramic material, which forms a shell around it. This shell becomes the mold for casting the stainless steel.
- Pattern removal: Once the ceramic shell has hardened, the pattern inside is removed by melting or dissolving it away, leaving behind a hollow mold.

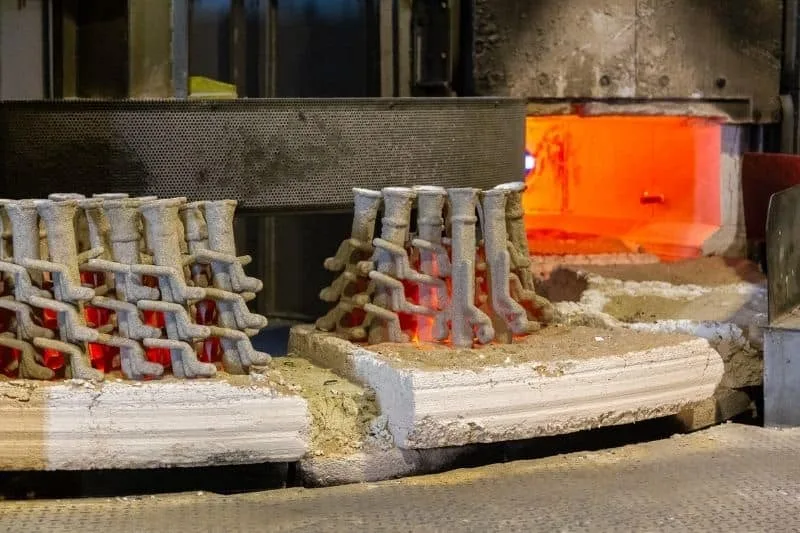

- Mold preheating: The ceramic mold is heated to a high temperature to eliminate any residual moisture, strengthen the mold, and facilitate better metal flow during casting.

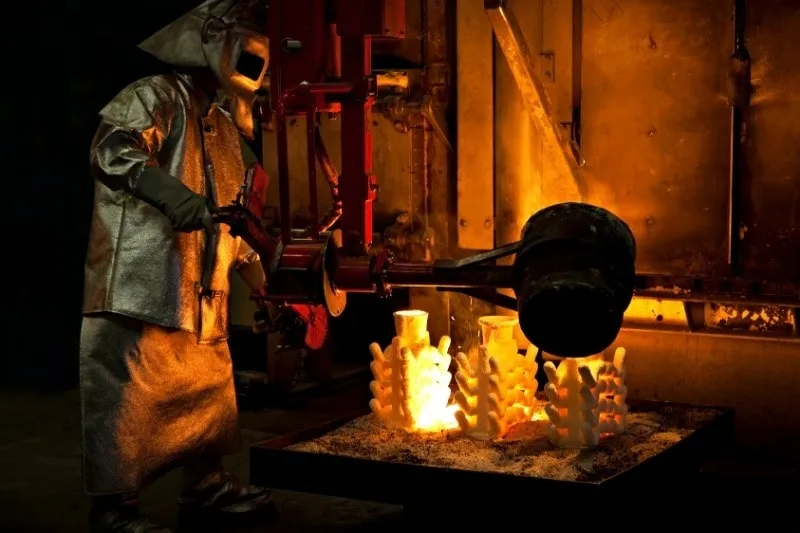

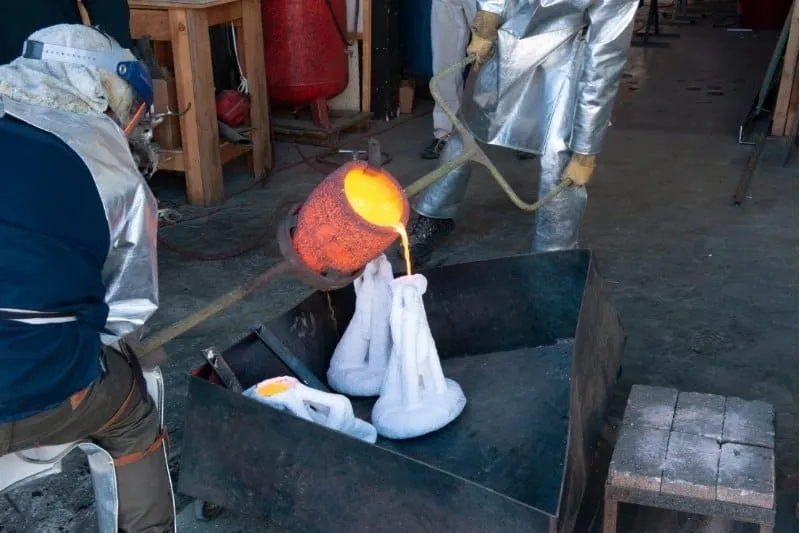

- Pouring molten stainless steel: The stainless steel is melted in a furnace and brought to the appropriate casting temperature. The molten metal is then carefully poured into the preheated ceramic mold.
- Mold removal: After the stainless steel has completely solidified, the ceramic mold is broken away to reveal the cast part.
- Finishing: The cast stainless steel component may require further processing, such as grinding, machining, or polishing, to achieve the desired surface finish and dimensional accuracy.
- Heat treatment (optional): Depending on the specific requirements of the application, the cast stainless steel part may undergo heat treatment to optimize its mechanical properties, such as strength, hardness, or ductility.
- Quality control: Finally, the finished stainless steel casting is inspected for any defects or deviations from the specified dimensions and tolerances. This may involve visual inspection, non-destructive testing techniques, or dimensional measurement
Difficulties Encountered in Processing 316 Stainless Steel
Dealing with 316 stainless steel is difficult as this steel has more hardness and strength than others, hence the need of the spesndal machining techniques and tooling to reduce tool buying and hardening of work. Low concentrations of the molybdenum can cause a work hardening during forming processes and consequently it requires exact control of processing parameters in order to prevent cracking and distortion. The heat post-welding of 316 stainless steel requires a strict heat treatment to avoid stainless steel sensitization which can lead to subsequent corrosion risks. Cleaning should be carried out throughout the entire processing route to preserve its corrosion resistance and very detailed precautions are needed to stop the possibility of surface defects or contaminations. To sum up, 316 stainless steel gives out excellent properties. However, more Due Care has to be done during the processing so as to enhance the performance and quality.
Common Applications of 316 Stainless Steel

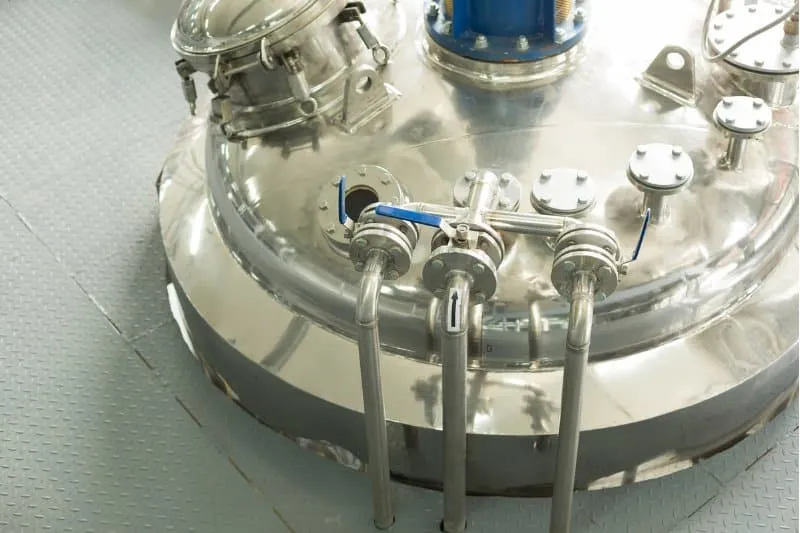

316 stainless steel is used extensively across different sectors on account of its well-known corrosion resistance, adequate mechanical performance and diversity. Among the top applications are marine environments, where it is commonly used for boat fittings and hardware of offshore structures due to its resistance to salt water and chloride exposure. The stainless steel 316 is the most common in the food and beverage processing since it is recommended for equipment that can be sanitized and that is resistant to the corrosive substances. Its biocompatibility provides the value of application in pharmaceutical and medical fields for surgery and implantation. In the chemical field, it is employed in processing, aerospace, automotive and architectural sectors, thus highlighting its viability and dependable performance in several sectors and under extreme and challenging situations.
