Die Casting Aluminum
In this article, we will delve into the die casting process, explore its advantages, examine applications across industries, and discuss the environmental and technological aspects associated with this innovative manufacturing technique.
[toc]
Die Casting Process Explained
- Melting Aluminum
The process begins with the melting of raw aluminum in a furnace, turning it into a liquid state ready for molding.

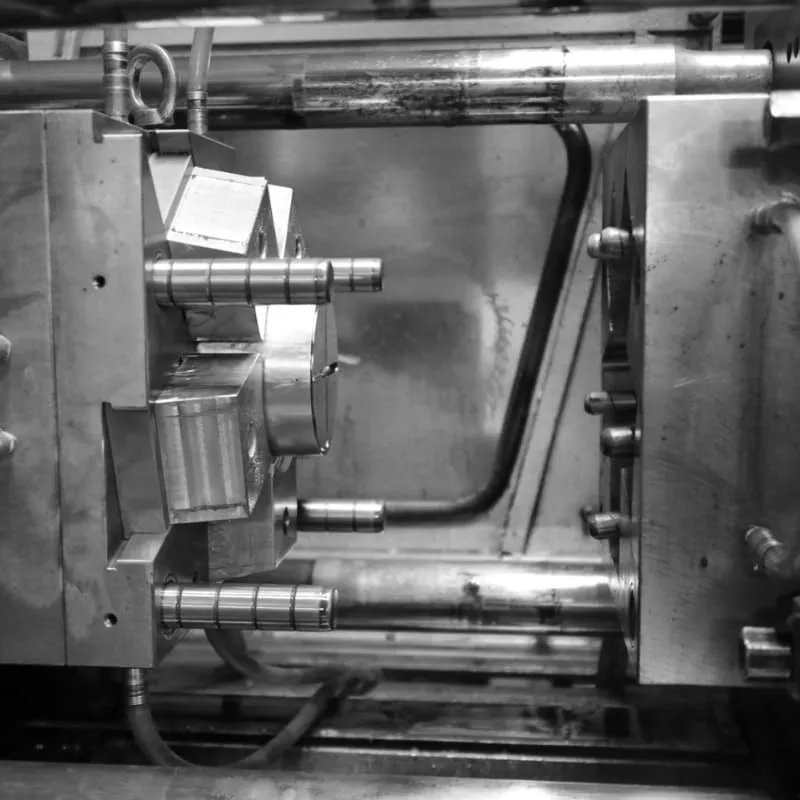

- Injection into Mold
Injected under high pressure into a meticulously crafted mold cavity, the molten aluminum conforms to the intended shape.
- Cooling and Solidification
Once injected, the molten metal cools and solidifies, maintaining the intended structure of the part.

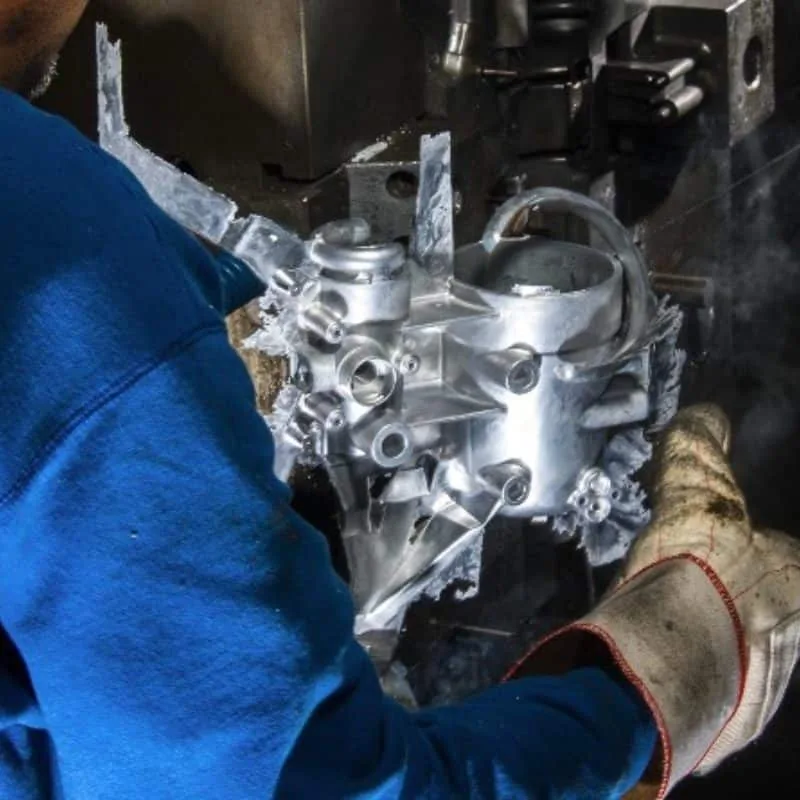

- Mold Opening and Ejection
Upon completion of the solidification process, the mold is unsealed, and the freshly shaped aluminum component is expelled, ready for subsequent processing.
Varieties of Aluminum Employed in Die Casting
In die casting, various aluminum alloys are utilized to achieve specific properties in the produced parts. Common alloys include:
- A380 for its excellent fluidity
- A360 is known for high corrosion resistance
- A413 for intricate and thin-walled components
- Aluminum-silicon (400 series) and aluminum-copper (200 series) alloys offer versatility
- Aluminum-magnesium (500 series) provides a favorable strength-to-weight ratio.
- Aluminum-zinc (700 series) and aluminum-tin (800 series) alloys offer increased strength and castability
- Aluminum-nickel (900 series) alloys provide improved strength and corrosion resistance.
The choice of alloy depends on the desired properties and the application of the die-cast part.
Advantages of Using Aluminum for Die Casting
Using aluminum for die casting offers a range of advantages, making it a popular choice in various industries. Here are some key benefits:
- Lightweight and High Strength
- Thermal Conductivity
- Reduced Tooling Costs
- Corrosion Resistance
- Ease of Machining and Finishing
- Cost-Effective and Recyclable
- Versatility in Alloys
Drawbacks in Utilizing Aluminum for Die Casting
Aluminum, a commonly used material in die casting, exhibits limitations such as a lower melting point restricting its use in high-temperature applications, reduced wear resistance in high-friction scenarios, and constraints in size suitability for larger components. It may not be optimal for applications requiring extreme strength, can become brittle at low temperatures, and is susceptible to surface porosity. Aluminum’s challenges arise in achieving defect-free thin-wall casting. While it may lack ideal chemical resistance and has a relatively high thermal expansion coefficient, careful design, alloy selection, and process optimization can often mitigate these limitations, making aluminum a widely used and versatile choice in die casting.
Contrasting Aluminum with Other Materials in Die Casting
Aluminum, commonly used in die casting, is lightweight and has good heat dissipation, and corrosion resistance. Examples include engine components. Zinc, with a lower melting point, offers high precision and smooth surfaces, suitable for small intricate parts like door handles. Magnesium, known for its high strength-to-weight ratio and good machinability, is used in aerospace and electronics for lightweight components. Material choice depends on specific application needs, cost considerations, and desired properties.

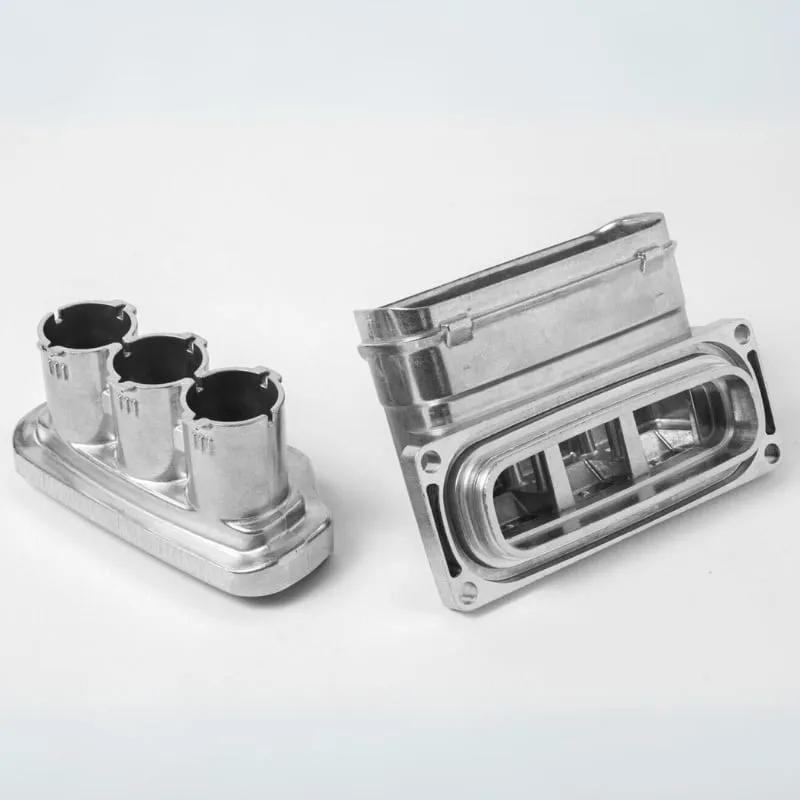

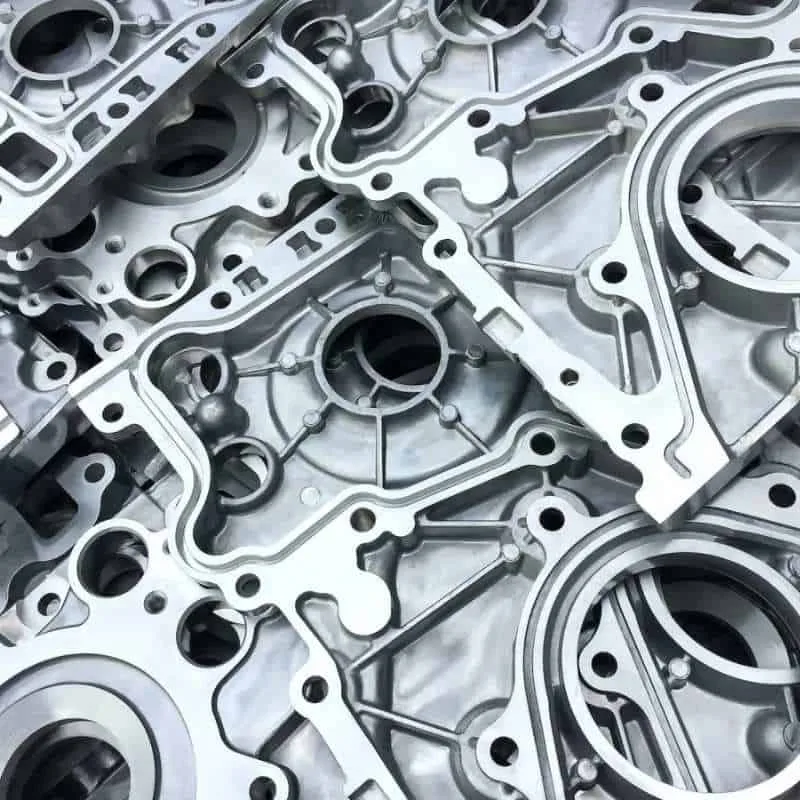

Typical Die-Cast Aluminum Components
Die casting is commonly used for producing diverse aluminum parts. Applications span automotive components, electronic housings, lighting fixtures, consumer goods, and appliance parts, as well as medical equipment, aerospace components, communication devices, power tools, furniture hardware, and sporting goods. The process is also utilized in manufacturing pump housings, valve components, construction hardware, and various machine parts, providing consistent quality and precision for a wide range of aluminum components across industries.
Quality Control Measures for Die Casting
Quality control is crucial in die casting to ensure the production of high-quality parts. Several measures are implemented throughout the die casting process to maintain quality standards:
- Process Monitoring:
- Real-time tracking of parameters like temperature and pressure.
- Continuous optimization of casting parameters for efficiency.
- Tooling and Equipment Maintenance:
- Regular inspection and maintenance of molds and machinery.
- Ongoing tooling revisions based on production feedback.
- Material Quality Control:
- Thorough testing of metal alloy properties.
- Strict control over alloy composition.
- Quality Inspection and Testing:
- Dimensional and visual inspections of cast parts.
- Non-destructive testing for internal defects.
By integrating these quality control measures, die casting manufacturers can enhance the consistency and reliability of their production processes, resulting in high-quality cast parts that meet or exceed customer expectations.
Custom Die Casting Aluminum Parts
When seeking custom die-cast aluminum parts, start by researching and identifying manufacturers with relevant experience and a proven track record. Assess their technological capabilities, ensuring they have modern equipment and expertise in working with aluminum alloys suitable for your application.
Evaluate the manufacturer’s commitment to quality standards, looking for industry certifications like ISO and robust quality control processes throughout production. Communication and collaboration are key; choose a manufacturer that maintains open communication channels and is willing to collaborate on design improvements and problem-solving.
Consider the manufacturer’s prototyping and sampling services to test and refine your design before full-scale production. Clarify costs by requesting detailed quotes covering tooling, production, and additional services, and ensure clear payment terms. Discuss lead times for prototyping and production, confirming the manufacturer’s capacity to meet your production volume requirements.
Seek client references and reviews to gauge the manufacturer’s reputation. Additionally, inquire about logistics, shipping options, and responsibilities regarding customs and regulations for timely and safe delivery. Finally, discuss post-production support, including warranties and the manufacturer’s commitment to resolving any issues that may arise. Thorough consideration of these factors will help you select a reliable manufacturer for your custom die-cast aluminum parts.
Conclusion
Die casting aluminum is a dynamic and essential process in modern manufacturing. Its precision, versatility, and environmental considerations make it a key player in various industries.
