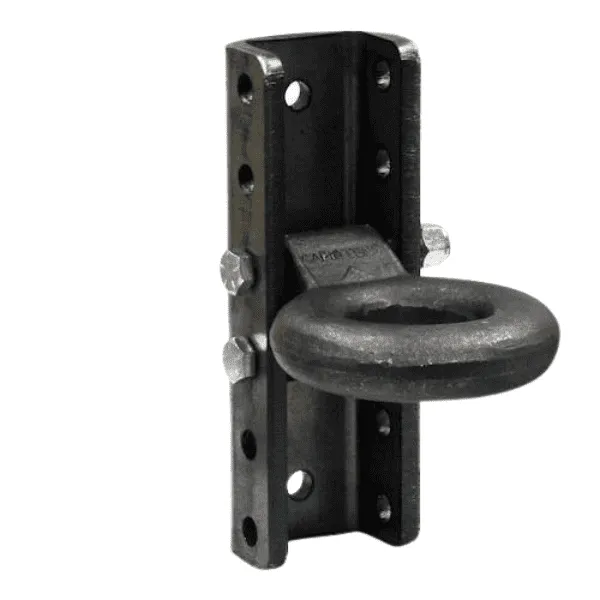

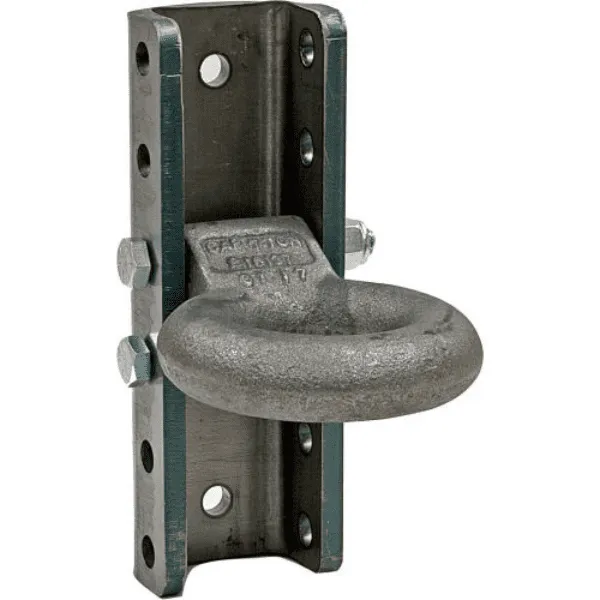

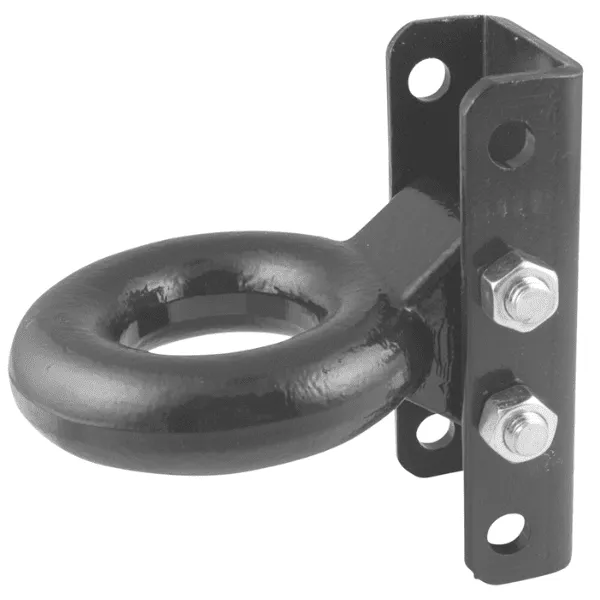

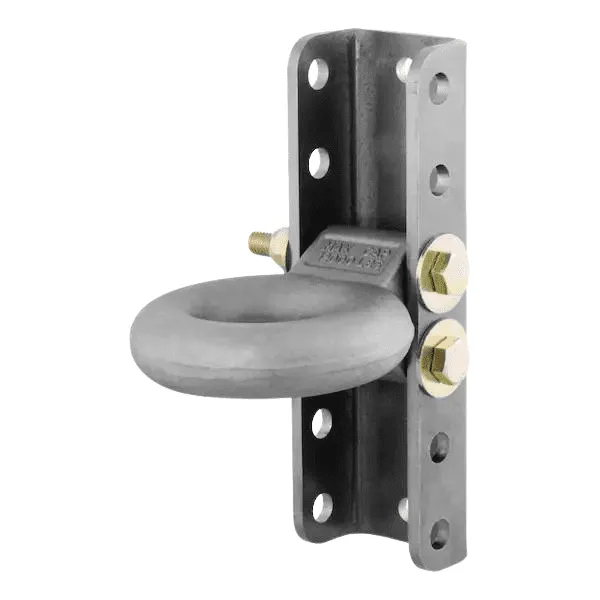

Adjustable Heavy-Duty Forged Steel Tow Eye with Mounting Channel

Reference Price:

US $2.00-8.00

/Piece | 1000 Piece (Min Order.)

Type:

Tow Eye With Channel

Certification:

ISO

Condition:

New

Samples:

US$ 30/Piece

1 Piece(Min.Order)

Customization:

Available

Shipping Cost:

Negotiate with us about Details.

Payment Method:

payment

Product Details

Basic Info

Model NO.HDCTC029
MOQ1000
TrademarkHDC
MaterialSteel/Carbon Steel
Finish TypePowder Coated
StyleForged Tow Eye with 3-Position Parallel Mount Holes
OriginChina

Packaging & Delivery

Shipping Option‎Courier, Air, Sea, Railway Express, EXW, FOB, CIF, DDU, DDP
Delivery Date25-30 days
Transport PackageCustomized
TrademarkHDC

Product Description:

Engineered for maximum durability and safety, our Heavy-Duty Adjustable Trailer Coupler is the ultimate solution for heavy towing requirements. Built to withstand up to 12,000 lbs of load, this coupler features a robust ring with a 2-1/2 inch inside diameter and 1-3/8 inch ring thickness, ensuring a strong, secure connection under even the most demanding conditions. The adjustable channel allows for precise height modification in 2-inch increments, accommodating a variety of trailer configurations.

Key Features:

  • High Load Capacity: Rated for up to 12,000 lbs, ideal for heavy-duty towing tasks.
  • Adjustable Design: Features an 8-inch high channel that adjusts in 2-inch increments for optimal alignment and versatility.
  • Durable Construction: Made with a thick 2-1/2 inch internal diameter ring and fits in a 2-7/8 inch channel, providing unmatched strength and reliability.
  • Secure Fit: Ensures a tight and secure connection to prevent detachment during transit.
  • Corrosion Resistance: Crafted from high-quality materials that resist weathering and corrosion, prolonging the life of the coupler.

Applications:

  • Commercial Hauling: Perfect for transporting large loads, heavy machinery, and industrial equipment.
  • Recreational Use: An excellent choice for towing boats, RVs, and trailers for outdoor adventures.

With its superior strength and adjustable features, this Trailer Coupler is designed for those who demand reliability and durability. Whether for commercial hauling or weekend excursions, it provides outstanding performance and safety, making it a top choice for trailer owners seeking the highest standards in towing equipment.

Customization OptionDescriptionOptions
MaterialChoose the material based on strength, corrosion resistance, and durability.Steel, Stainless Steel, Aluminum
Load CapacitySelect the capacity to match the weight requirements of your towing needs.10,000 lbs, 12,000 lbs, 15,000 lbs
Ring DiameterCustomize the ring diameter to fit different hitch ball sizes.2-1/2 inches, 3 inches
Channel SizeChoose the channel size to ensure compatibility with your vehicle’s hitch receiver.2-7/8 inches, 3-1/2 inches
FinishSelect a finish that enhances the coupler’s durability and visual appeal.Galvanized, Powder Coated, Painted
Adjustment IncrementsChoose the increment levels for adjustable height to ensure flexibility in use.1 inch, 2 inches, Custom increments
Mounting OptionsSelect the preferred method for mounting the coupler to the trailer.Bolt-on, Weld-on

Complete Customization Support Provide By HDC

Professional AdviceOur sales team is expertly trained to engage effectively with you, understand your needs, and provide professional advice on materials, finishes, and other customization options.
Design AssistanceIf you’re in the conceptual stage, without specific product specifications or design drawings, we’re here to help. We’ll assist in finalizing the precise product dimensions and details, collaborating closely with our creative production design team to provide you with detailed design drawings.
Prototyping ServiceWe offer the creation of precise prototypes, allowing you to evaluate the physical appearance, details, and quality of the product firsthand. Please note that personalized products, especially those requiring casting and forging processes, may incur additional costs for prototype development.
Design ChangesFor immediate design adjustments or to customize products, please reach out to us. We guarantee a prompt response to your inquiries.
After-Sales ServiceWe are dedicated to maintaining ongoing communication with you and providing continuous, responsive after-sales support.

HDC Customization Service Policy

Minimum Order Quantity (MOQ)The MOQ for customized products varies based on the type, size, and complexity of the manufacturing process. We encourage you to contact our sales team for the specific MOQ tailored to your project needs.
Delivery TimelineThe expected delivery date will be established in consultation with you at the time of order placement, ensuring clarity and alignment on timelines.
Deposit and Balance PaymentTo initiate your customization project, we require a deposit, typically 30% of the total order value, upon order confirmation. This deposit ensures the smooth progression of your project. The balance, including any shipping fees, is due prior to the final product delivery, following the completion of production.
Shipping OptionsWe offer both sea freight and air freight options to best match your delivery needs and preferences.
Payment MethodsWe accept a variety of payment methods for your convenience, including L/C (Letter of Credit), D/P (Documents Against Payment), Wire Transfer, and Paypal. This flexibility allows you to choose the method that best suits your financial planning and project timeline.
